产品规格参数

• 最大测量误差

  MID 004精度等级II（2%）

• 测量范围

  0.025...5 m/s (0.02...16.4 ft/s)
  0...6360 dm3/min (0...1680 gal/min)

• 介质温度范围

  0...150 °C (17.8...302 °F)

• 最大过程压力

  PN 25/ ASME Cl. 150

• 接液部件材质

  测量管：1.4301 (F304)
  过程连接：1.4571、1.4404 (F316L)、1.0038 (S235JR)、1,4306 (F304L)、1.4307 (F304L)、A105

应用领域

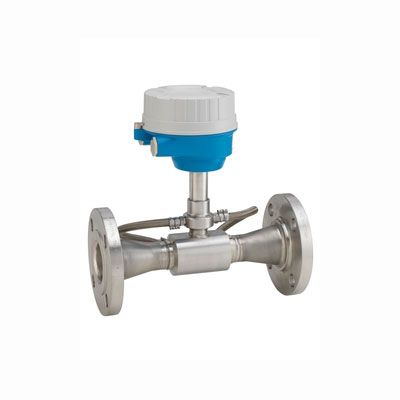

Prosonic Flow E Heat is the perfect heat flow sensor for enhanced energy management throughout all industries. It offers recognized custody transfer approvals for heating and cooling applications and is optimized for flexible industrial use.

• The measuring principle is independent of pressure, density, temperature and conductivity

• Best choice for energy management of water (e.g. heating and cooling) across all industries.

Device properties:

• Accuracy Class 2 according to international approvals such as MI-004, EN 1434, OIML R75

• Entire sensor housing made of stainless steel

• Process temperatures up to 150 °C (302 °F)

• Certified pulse output

• Cost-efficient, application-optimized transmitter

优势

• Full compliance with custody transfer regulations

• Long-term stability – reliable sensor with robust industrial design

• Energy and cost savings – optimized sensor for fully insulated pipes

• Dependable flow measurement – high turndown

• Effortless, safe operation – no commissioning needed, no unauthorized device access due to locked pulse output

• Simple process indication – direct reading of status information via color LEDs

• Increased reliability – comprehensive diagnostics
